F-98 CMM FIXTURE KIT

Enhance the accuracy and throughput of your CMM inspection, with repeatable fixtures which are easy to assemble and adjust and provide a cost effective fixturing solution for repeat inspections.

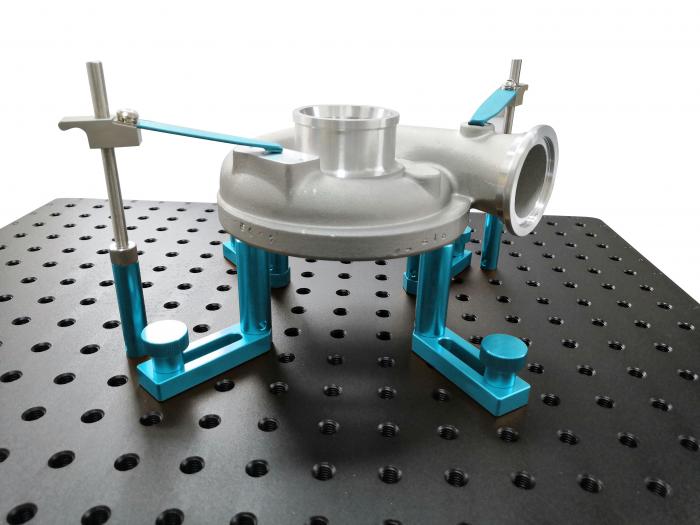

Fixturing components correctly during inspection is essential for measurement accuracy and reproducibility. XY-TOP fixture kits are designed to support components securely and with minimum force, while providing a clear access path for the probe. A range of clamps, holders and adjustable supports provide great flexibility for fixturing a host of different shape parts and types of material.

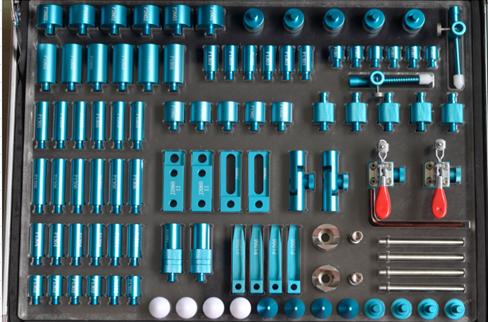

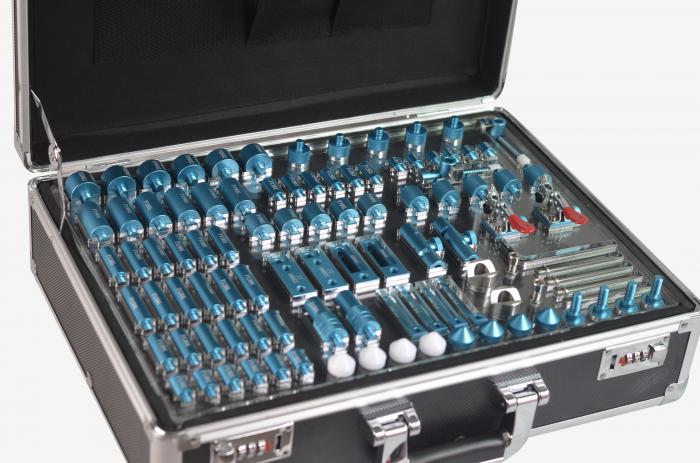

M8 thread| 98-Piece Fixture Component Set

Advanced set of fixture components with magnetic and pinch clamps in a durable storage case. Each component is labelled to assist with documenting and reassembling frequently used fixture builds.

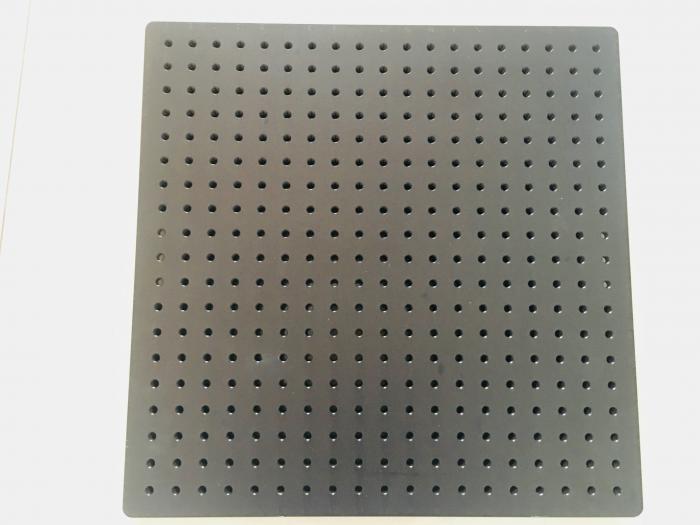

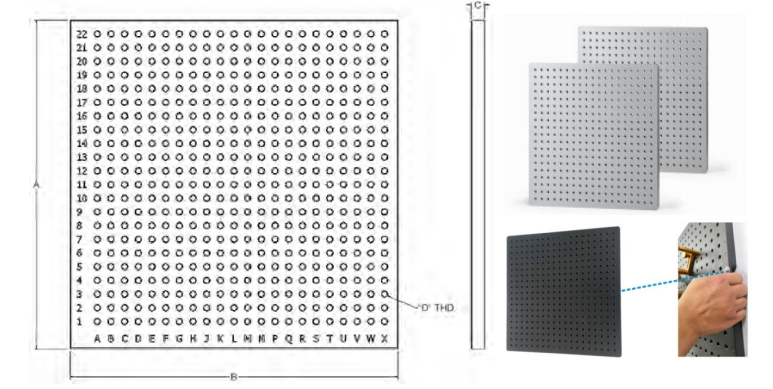

M8 thread| Base Plate

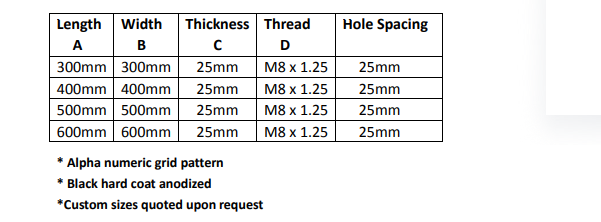

Available in four popular sizes and made of aluminium with a tuff anodized finish. Base plates can be secured to the CMM table using the clamps and screws provided. The convenient laser engraved alphanumeric grid system assists with documenting and reassembling fixtures.
