The Stand of Gage blocks sets
Name:The Stand of Gage blocks sets
The longest length gauge:1000mm
Angle of plane and space:360 degree
Material:aluminum
Structure:Durable
The smallest length gauge:10mm

Product Description

The CMM Calibration Stand



Introduction

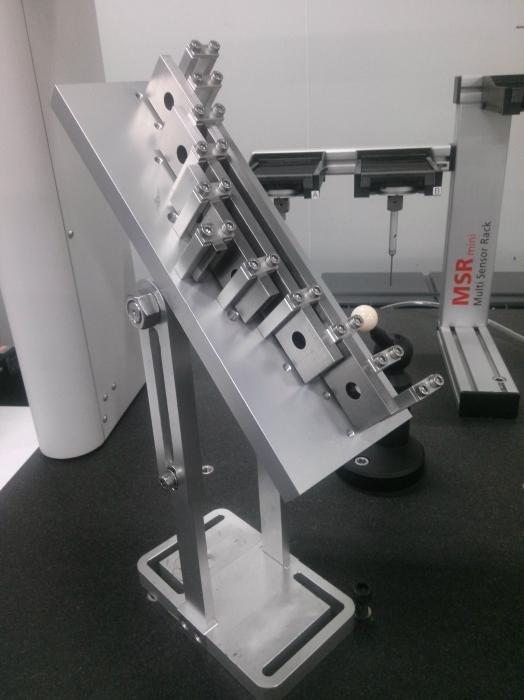

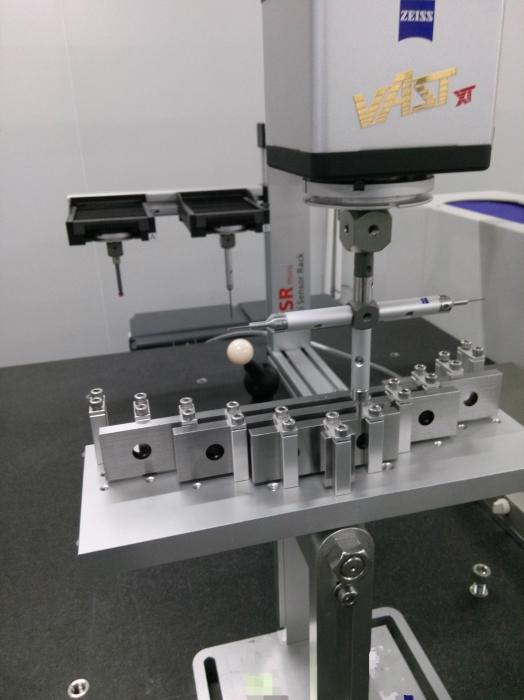

The Xyz series coordinates measuring machine gauge fixturing system is specially designed for CMM calibration, which is with stable dynamic performance and reliable structure. The Xyz series helps to adjust the gauge angle in 3D direction easily, used for calibrating the bridge type high accuracy coordinates measuring machines.



The Xyz series gauge fixturing system is widely used in the measuring institution and enterprises, it should be an outstanding tool for your calibration.









 Features

 * High working efficiency

The 2D and 3D locating angle adjusting is using repeatable locating structure, able to achieve multiple measuring process with only one program, to verify the effect of each angle’s compensation, offers much higher working efficiency.



 * Innovative angle locating

Using pressure surface locating and clamping method, ensures stable and accurate locating of the angle, protect the gauge blocks, instead of simple assistance tools or the screw clamping.





* Flexible components

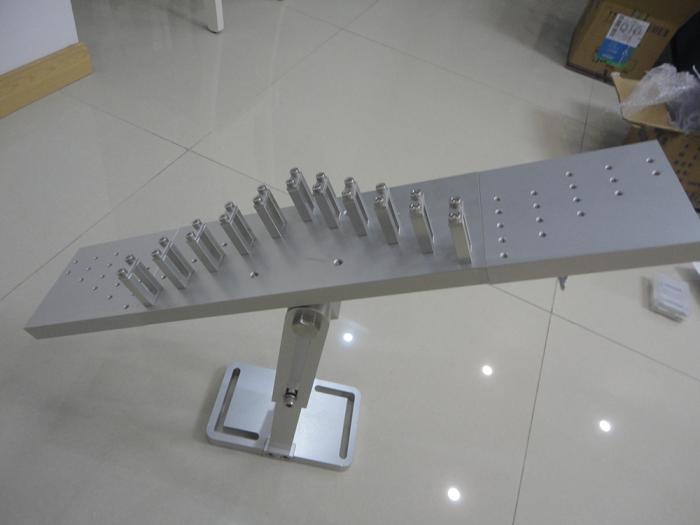

The gauges supporting plate and height supporting column have flexible expanding components, users can choose the suitable components based on the length of the gauges.



* Flexible gauges distribution

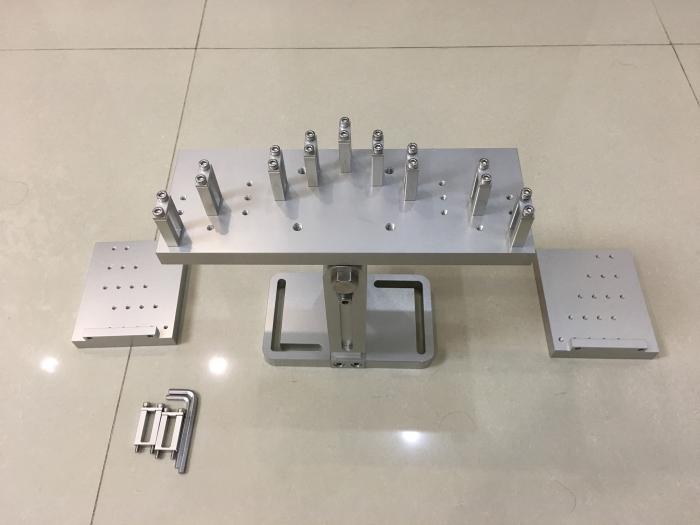

 Including more than 90 locating holes, for users to put any size gauges inside the grooves.

It can put six pieces gauge blocks at the same time.



 * Convenient base fixing

 The supporting base and the CMM machine base connecting is using screws, offers standard screws of M8, M10 and M12, compatible with different types of CMM.

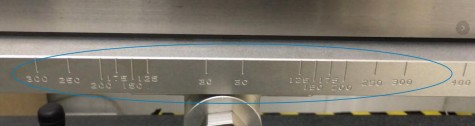

* Innovative marking points scale
