108 Pieces CMM Fixture Kits Aluminum With Coding System Programmable

Coordinates measuring machine fixture

our coordinates measuring machine fixtures is capable to increase the efficiency, repeatability and accuracy of the workpiece measuring in the coordinates measuring machine. The fast combination and coding system, ensures the flexibility of the fixtures. No matter what the size, shape or materials of the workpieces,it will offer complete fixing solution.

CMM Fixture Kits Steel / Aluminum With Coding System Programmable" ori-width="680" ori-height="453" width="680" height="453" alt="108 Pieces CMM Fixture Kits Steel / Aluminum With Coding System Programmable" style="box-sizing:content-box;margin:0px;padding:0px;border:0px;font-style:inherit;font-variant:inherit;font-weight:inherit;font-stretch:inherit;font-size:0px;line-height:inherit;font-family:inherit;vertical-align:middle;color:transparent;max-width:750px;width:680px;height:453px;" />

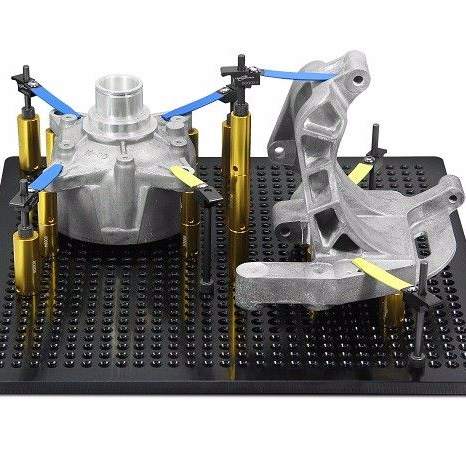

Workpiece fixing solution

Our coordinates measuring machine fixture is applied in aviation, automobile, electronics, or medical industries. We are offering complete solution, to satisfy all workpiece fixing requirement

CMM Fixture Kits Steel / Aluminum With Coding System Programmable" ori-width="680" ori-height="453" width="680" height="453" alt="108 Pieces CMM Fixture Kits Steel / Aluminum With Coding System Programmable" style="box-sizing:content-box;margin:0px;padding:0px;border:0px;font-style:inherit;font-variant:inherit;font-weight:inherit;font-stretch:inherit;font-size:0px;line-height:inherit;font-family:inherit;vertical-align:middle;color:transparent;max-width:750px;width:680px;height:453px;" />

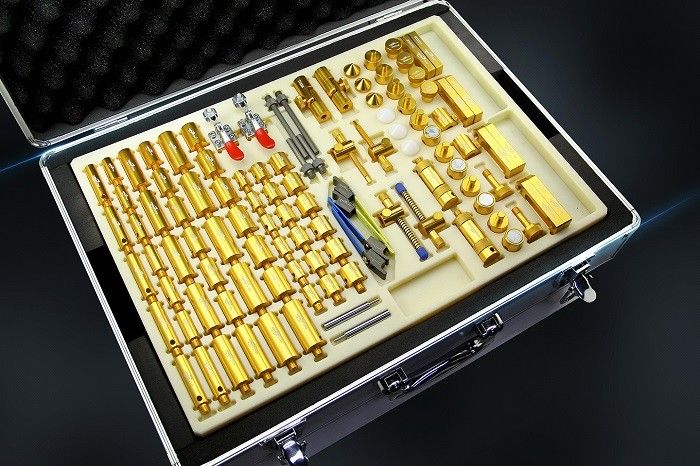

The series is offering M6 or M8 screws for option, together with the fast combination fixture kits. All the components are able to combined easily and fast, no need for extra tools, largely increase the fixing efficiency of measuring.

The base board is laser printed with codes, users are able to use these codes for standard programming and recording, increase the repeatability of the fixing, eliminating the measuring error caused by the fixing offset. Increase the accuracy and repeatability of the measuring result.

CMM Fixture Kits Steel / Aluminum With Coding System Programmable" ori-width="680" ori-height="285" width="680" height="285" alt="108 Pieces CMM Fixture Kits Steel / Aluminum With Coding System Programmable" style="box-sizing:content-box;margin:0px;padding:0px;border:0px;font-style:inherit;font-variant:inherit;font-weight:inherit;font-stretch:inherit;font-size:0px;line-height:inherit;font-family:inherit;vertical-align:middle;color:transparent;max-width:750px;width:680px;height:285px;" />

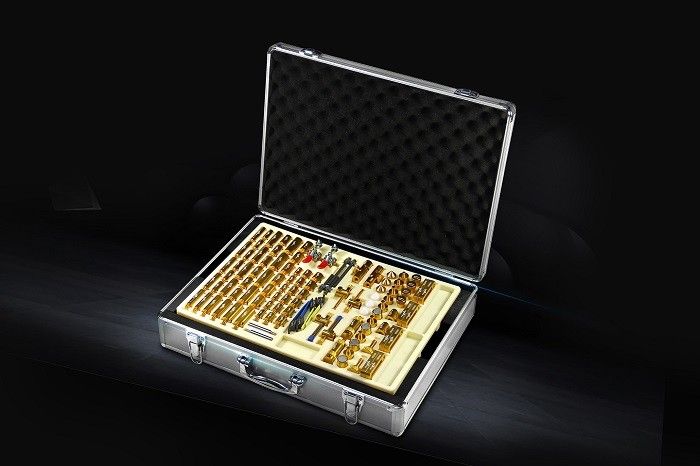

Advanced machining and surface processing

Our coordinates fixtures are using CNC machining technology, base boards are using hard anodizing for the surface processing, flatness is under 0.05mm(Within 500mm). The fixture kits components are using color anodizing for the surface, high rigidity and hardness, avoiding the scratch during the operation process.

All the tension press use the high accuracy spring steel materials, stable recovery, ensures the stability of the pressing, increase the repeatability of the fixing.

CMM Fixture Kits Steel / Aluminum With Coding System Programmable" ori-width="680" ori-height="258" width="680" height="258" alt="108 Pieces CMM Fixture Kits Steel / Aluminum With Coding System Programmable" style="box-sizing:content-box;margin:0px;padding:0px;border:0px;font-style:inherit;font-variant:inherit;font-weight:inherit;font-stretch:inherit;font-size:0px;line-height:inherit;font-family:inherit;vertical-align:middle;color:transparent;max-width:750px;width:680px;height:258px;" />

Fixture Kits Components Listing
